SucceX Mini 40A 2-6S 4-in-1 ESC Dshot1200

Product Description
ESC // SucceX Mini 40A
Top Features:

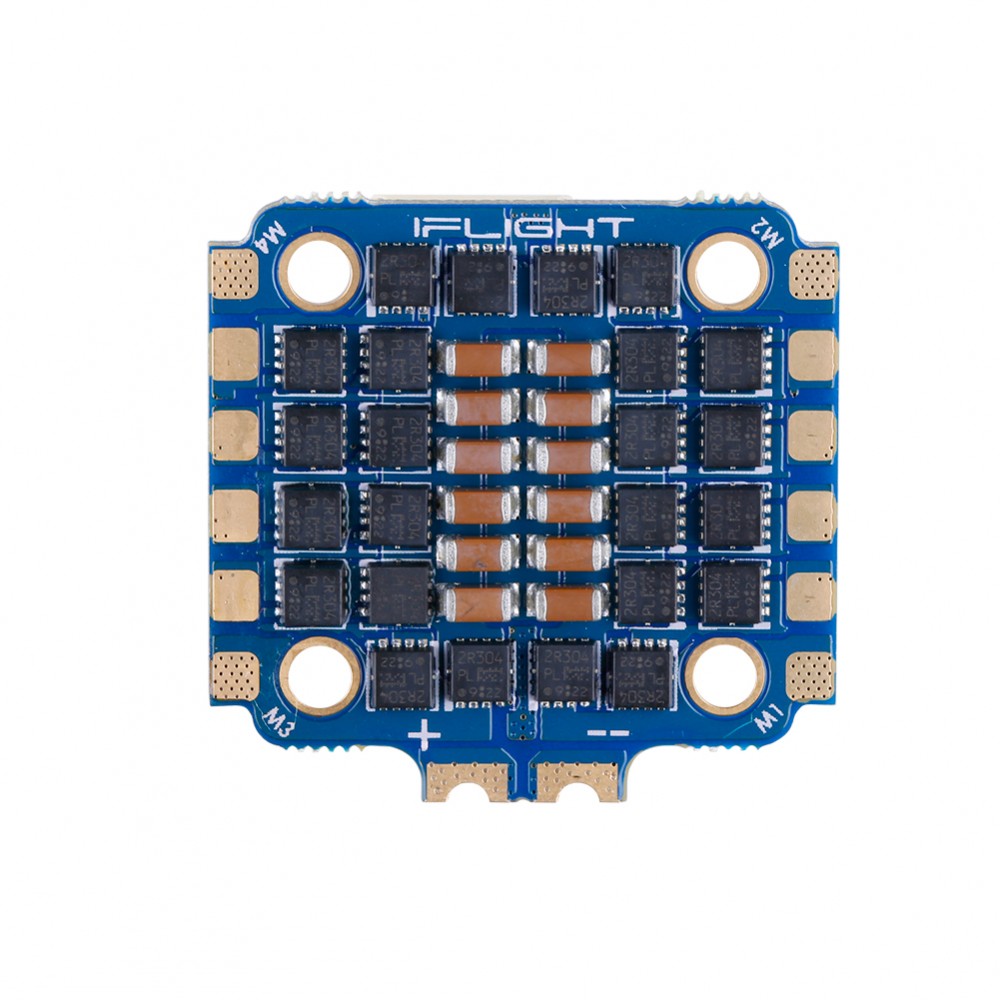

- 6 layers single-board stacking PCB board
- 3oz 1.6mm thick power board
- 32bit STM32FO51K MCU, 48kHz maximum clock speed
- TDK MLCC Low ESR ceramic capacitors
Specification:

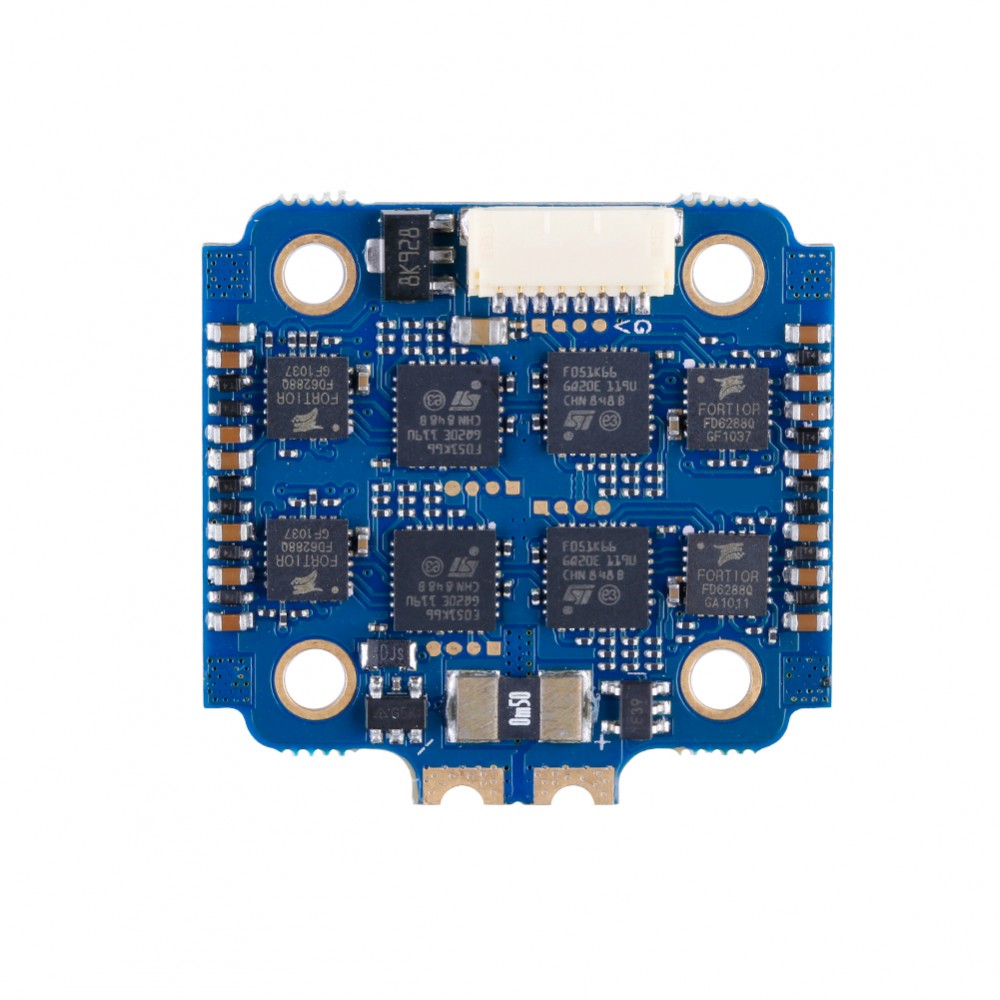

- MCU: STM32F051K66
- Up tp 48kHz PWM frequency
- Capacity: 470uF/50V
- Current Sensor: Yes
- Input: recommended 2-6S
- Constant: 40A / Burst: 50A
- BlHeli32 telemetry: Yes
- Supports up to Dshot1200, Proshot, Oneshot, Multishot
- Target: iFlight-BL32-4IN1

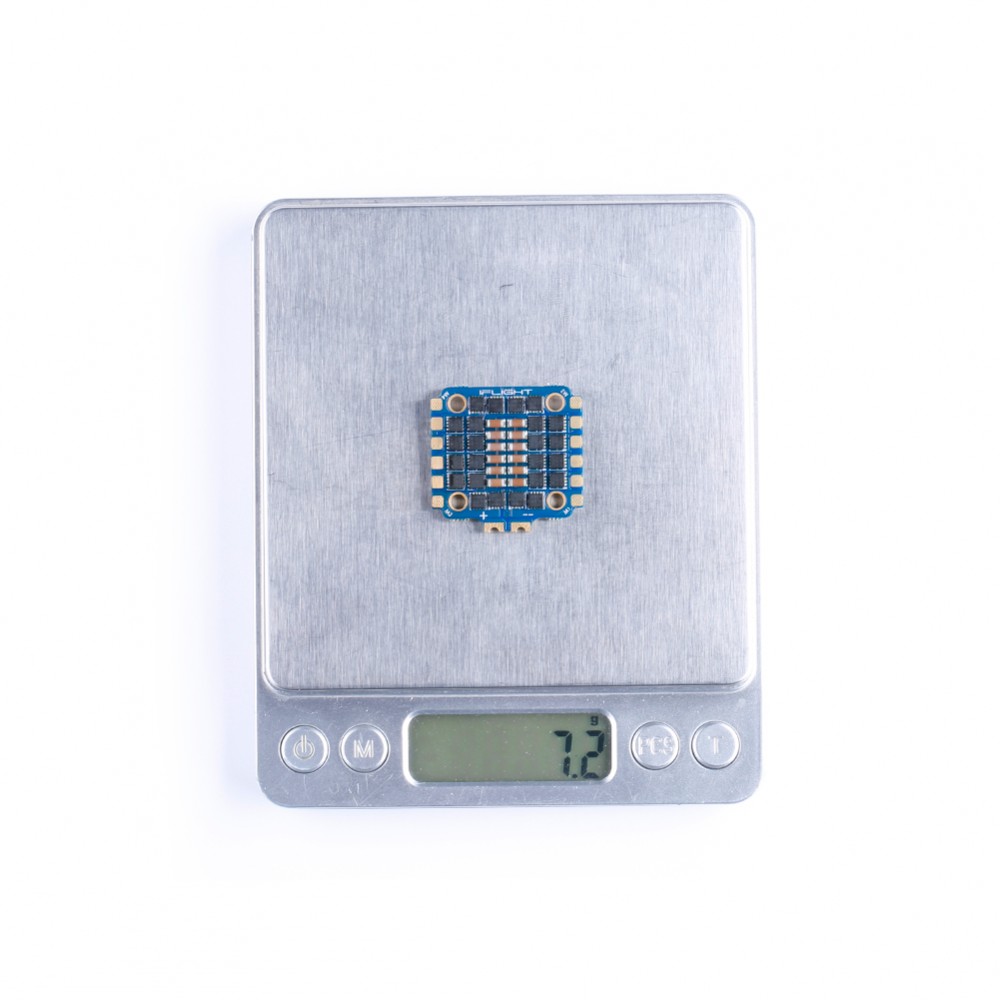

- Weight: 7.2g
- Mounting pattern: 20*20mm φ3mm with Grommets φ2mm

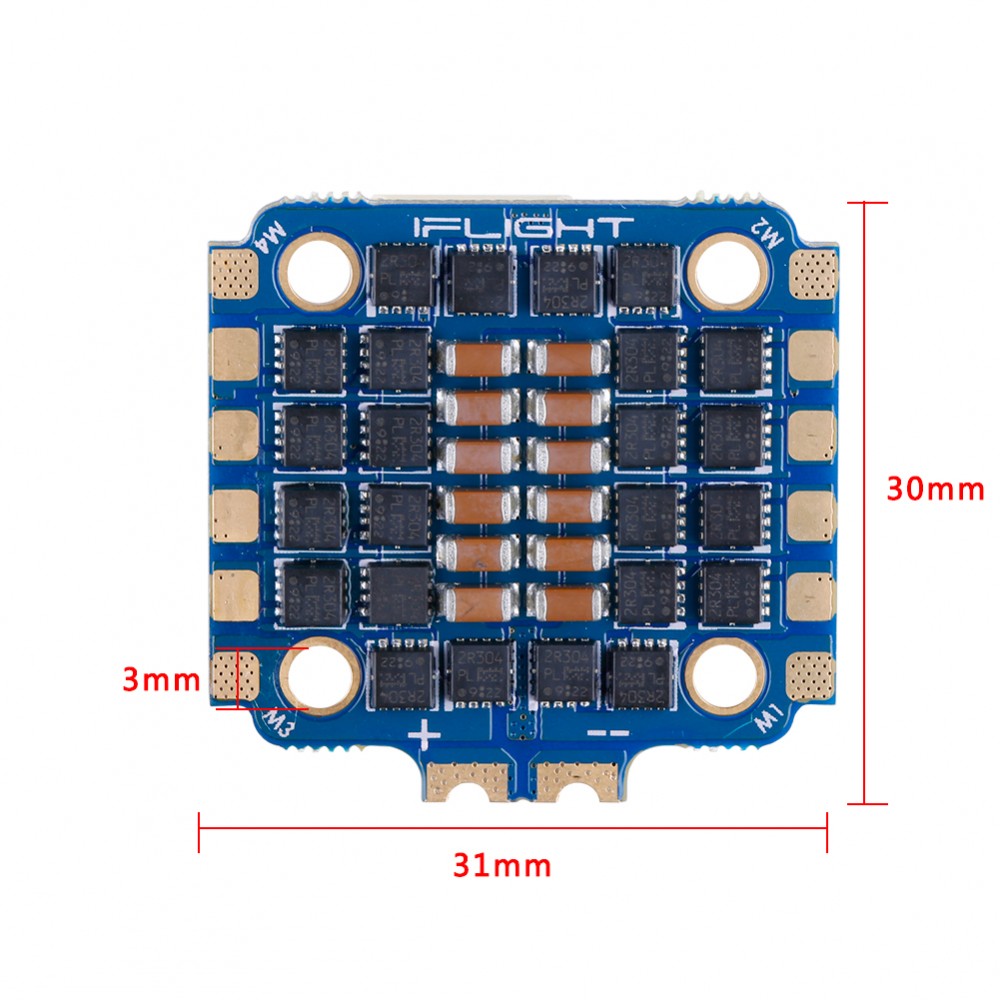

- Dimensions: 31*31mm (including the power pads)

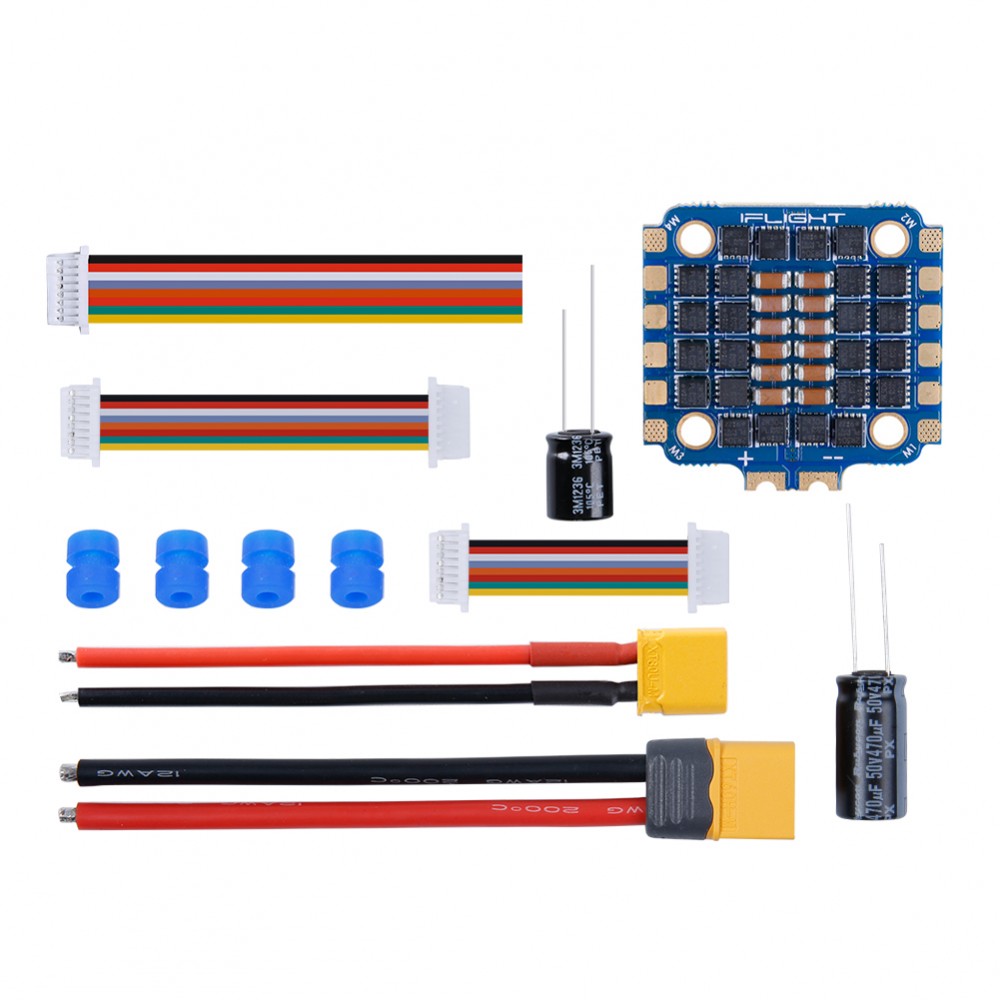

Package included:
-1pc x SucceX mini 40A ESC
Download: SucceX mini 40A 4in1 ESC manual
