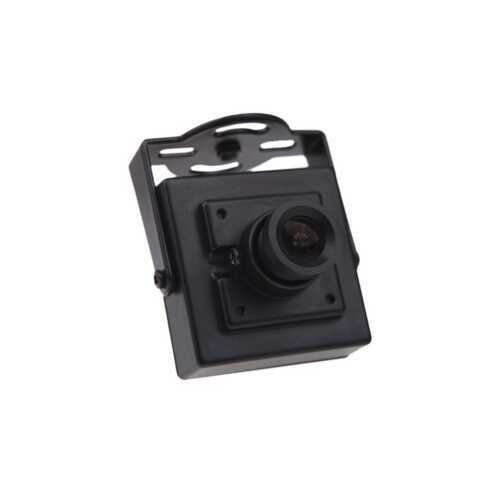

FPV camera
Features:
- Enable aerial photography even for small wheelbase multicopter
- ensuring high quality FPV effect
- 700VL 1/3'' Super HAD CCD Camera Lens
- CCD type: HAD CCD II
- Audio: can choose this mini mic for professional fpv photography
Specifications:
- Sensor: 1/3" SONY CCD Sensor
- Product name: 700 TVL
- Size: 38mm * 38mm
- Pixel: PAL:1020H * 596V
- Effective picel: PAL: 512H×582V
- Signal format: PAL
- Resolution: 700TVL
- Digital noise reduction: 2DNR,support 0-16 grade adjustment
- Min lumen: 0.01LUX/F1.2
- SNR: <=48dB
- Video out put: 1.0Vp-p/75ohm
- AGC (automatic gain control): 0.25/0.50/0.75/1.00 adjustable, max up to 55db
- HLC High light compensation
- Elsctronic Shutter: 1/50(1/60) - 1/100000 second
- Gamma correction: 0.45/1.0
- Lens: 3.6MM Glass lens
- Voltage: DC12V+-5%
- Working current: 70MA
- Working temperature: -20℃--60℃
- Package size: 10 * 7 * 6cm / 3.9 * 2.7 * 2.4in
- Package weight: 92g / 3.2oz
Package list: RM1594 1 * 1/3" Sony 700TVL PAL 3.6mm Mini CCD Camera 2 * Cable 1 * English user manual
